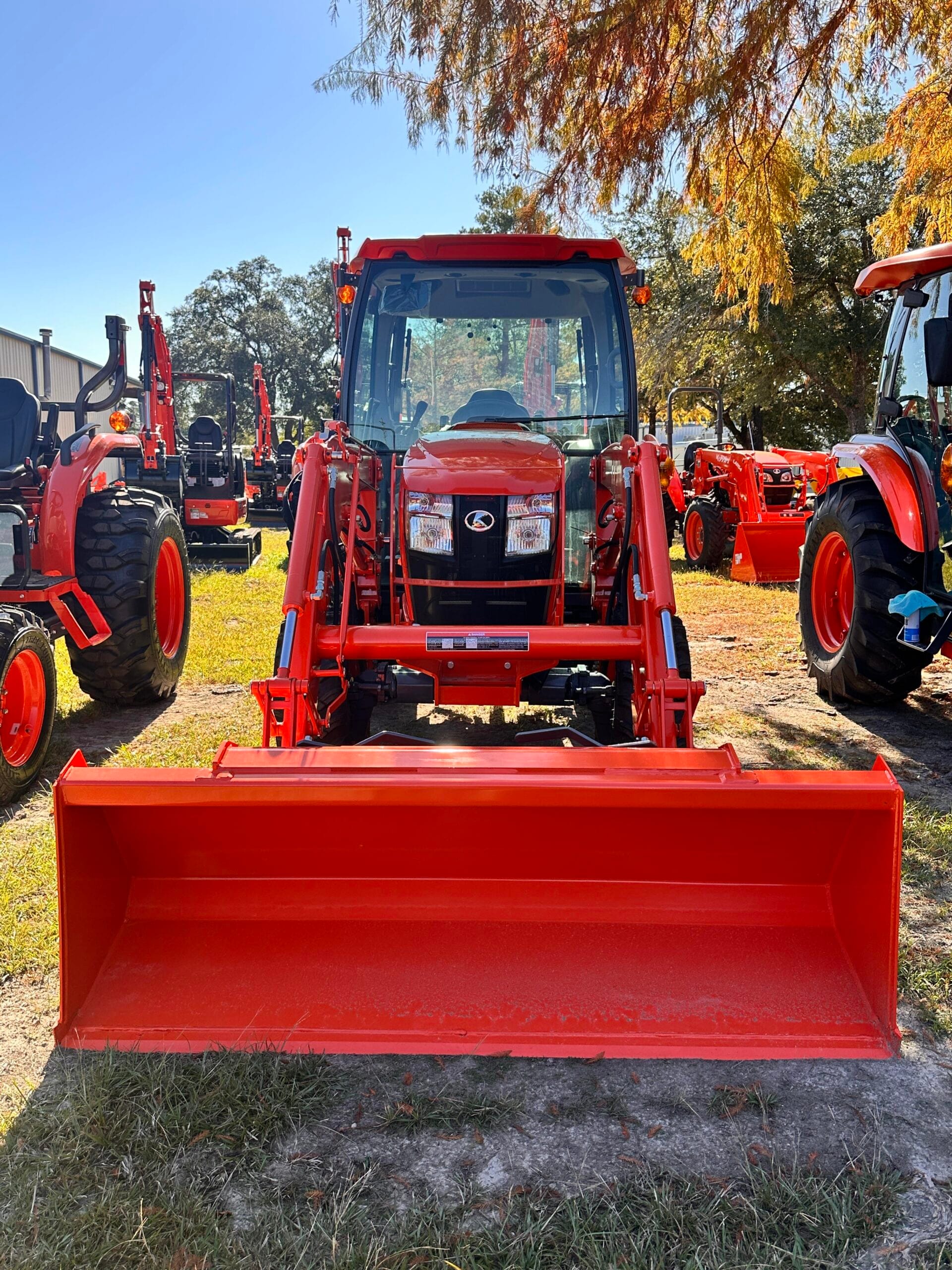

Kubota Grand L4760 Cab Compact Tractor

MODELS: L3560, L4060, L4760, L5060, L5460, L6060, L3560LE, L4060LE

Kubota’s Grand L60 Series is the ultimate package for outstanding performance and maximum operator comfort in the 37-62 HP tractor segment. Premium in design and powerful in performance, the Grand L60 Series is equipped with high quality Kubota engines and transmissions. Whether you’re mowing, landscaping or needing front-mounted implements, Kubota has the versatility capabilities to match your needs. All of this is backed up with Kubota’s reputation for quality, reliability, and comfort so you can maximize your productivity. #1 selling compact tractor in the USA.*

*Based on EDA/UCC Data from 01/01/2018 – 12/31/2024 for sales of new compact tractors 0-200 Hp in the USA.

Specifications:

Gross Engine HP – 37

PTO HP – 28.0-29.5

Standard Transmission – FST 8F/8R, GST 12F/8R, HST Plus (3 range)

Loader Lift Capacity – 1784 (809 kg)

PTO – Standard: Independent, Rear: 540 rpm, Mid: 2000 rpm

Hydraulic Flow – 8.1/8.3

3-Point Hitch Type – Category l

3-Point Hitch Capacity 24in behind – 2646

Operator Platform – ROPS/CAB

Driveline Type – 4WD

Features:

New Grand Cab:

• Spacious Cab – The new cab is 20 percent more spacious than previous and ergonomically designed to improve comfort and operations. What’s more, you get more legroom and increased headroom.
• One-Piece Hood – The front grille is now integrated with the hood for easier opening and closing and more
  convenient engine inspections and maintenance.
• Two-Tiered Headlights – In addition to the lower forward headlights, the upper front side lights provide a wider field of view when operating in the dark or in enclosed buildings like the shed or barn.
• Worklights –
  • Standard Equipment for Cab
    • AC/Heater with Internal/External Ventilation
    • 12 Volt Power Outlet
    • 60 Amp Alternator
    • Front Wiper and Washer
    • Front Work Lights
    • Interior Light
    • Door-mounted Side Mirrors
    • Deluxe High-back Reclining Seat with Swivel
    • Wide Fenders
  • Optional Equipment for Cab
    • Rear Windshield Wiper
    • Rear Window Defogger
    • Rear Work Lights
    • Radio/CD Player
    • Air-Ride Seat

Comfort & Ergonomic Design:

The Grand L60 boasts a wide range of deluxe features and functions to reduce fatigue and maintains productivity. With reduced noise and vibration levels, an improved deluxe seat, power steering and a cup holder, you can rest assured that your comfort comes first—so much so that you might forget you’re working.

• Power Steering – Responsive hydrostatic power steering makes every job easier. Straight-a-ways and tight turns alike are taken smoothly, while steering remains easy and worry-free when a heavy load is applied or the front loader is used.
• Deluxe Suspension Seat – The new suspension seat is specially designed to absorb shock to provide a comfortable ride even in harsh working conditions, and includes a handy swivel function. The optional Air-Ride seat adjusts its cushion to match your physique to provide optimal comfort even when negotiating rough terrain. It even includes a location for owner manual storage.
• More Legroom – The operator’s seat has been positioned more to the rear for extra legroom. This not only enhances riding comfort, but makes getting in and out of the cab easier as well.
• New Lever Layout – For easier access and smoother operation, the loader, hitch and remote levers are grouped on the right-side console.
• Tilt Steering Wheel – The steering wheel delivers an extra-wide tilt angle for maximum comfort. Just step on the adjustment pedal, tilt the steering wheel and lock for the most comfortable operating position. Step on the pedal again to unlock the wheel for easy tractor mounting and dismounting.
• Electric PTO Switch – Our PTO switch makes PTO operation easier than ever. Conveniently located on the side console, one push and turn starts the PTO and a simple push stops it.
• Rounded Fender/Wide Step – The Grand L60’s fender and wide step deck feature provide a larger, more comfortable step-through area.
• Cup Holder – The cup holder is within easy reach whenever you need to quench your thirst.
• Full Open Hood
• Fuel Tank

Clean Engine & Transmission:

Get all the power you demand while wasting less with Kubota’s line of clean-emission Common Rail direct injection engines for the Grand L60 Series. And choose from three state-of-the-art transmissions according to your needs: HST (Hydrostatic Transmission) Plus, GST (Glide Shift Transmission) or FST (Fully Synchronized Main and Shuttle Transmission).

• HST PLUS (Hydrostatic Transmission) – Tackle any task with ease and efficiency. With extraordinary precision, HST Plus’s automated control of both the HST pump and drive motor gives you optimal performance, regardless of the task, working conditions, or operator expertise.
• GST (Glide Shift Transmission) – Kubota’s exclusive GST features 12 speeds and clutchless operation
  for maximum operator ease. And, thanks to its electronically controlled hydraulic shifting system, the Grand
  L60’s GST allows you to shift on the go with exceptional response.
• FST (Fully Synchronized and Shuttle Transmission) – Kubota’s economical FST delivers the smooth and efficient shifting of eight forward and eight reverse gears while on the move.

Hydraulic & PTO:

The Grand L60’s state-of-the-art PTO and hydraulic systems are engineered to deliver power and reliable performance. Meticulously designed to give you the utmost control and maximum versatility, the Grand L60 ensures smooth and effective operation.

• Front Loader Hydraulic Valve – Kubota has designed an integral Front Loader Valve as part of the tractor. With this valve, you can quickly and easily attach the front loader and other front-mounted implements. The valve promotes efficient, clutter-free operation and matches the sleek styling of the tractor. If you don’t require a front loader or other front mounted implements, an optional Diverter Kit is available to allow the loader valves to function as rear remotes.
• Live-Independent PTO – The hydraulically activated Live-independent PTO clutch allows both the rear and mid-PTOs to be independently engaged/disengaged while the tractor is still in motion. And because the lever’s located in a convenient position, activating the independent PTO is easy. In addition, a Neutral/Auto Shut-off system and protective flip-up shields are included for total PTO safety and productivity.
• Telescopic Lower Link Ends – A wide range of implements can be used with the 3-Point Hitch. Quick and
  simple hook-ups can be achieved via the standard-equipped telescopic lower link ends.
• MID-PTO (Optional) – Kubota offers a semi-independent Mid-PTO for all Grand L60s that can be used with
  a variety of performance-matched front-mounted snow blowers or sweeper brooms.
• 4-Wheel Drive – The 4-wheel drive of the Grand L60 provides superior pulling power and traction in almost any working condition. The front-wheel-drive bevel gear delivers a smooth and full-power transfer. Combined with its 55˚ steering angle and compact differential, the Grand L60’s 4-wheel drive gives you the maneuverability and exceptional clearance you need for a wide range of applications.
• 3-Point Hydraulic Cylinders – The Grand L60’s external lift cylinders deliver an impressive 3-Point Hitch lift capacity. The system is externally mounted for easy maintenance.
• Remote Hydraulic Control Valves (Optional) – The Grand L60 can include three Remote Hydraulic Control Valves for a greater selection of hydraulically powered implements. For operators, this versatile system translates into a convenient and cost-efficient alternative.

Front Loader:

With their impressive lifting power, easy-access control lever operation, ultra-fast dump circuits, and simple connectivity, the Grand L60’s performance-matched LA555, LA805 and LA1055 front loaders carry their own weight and more.

• Mechanical 2-Lever Quick Coupler (Standard) – Hydraulic 2-Lever Quick Coupler* (Optional) – The front loader can also be used with the mechanical or optional hydraulic quick coupler attachments, such as buckets, pallet forks and bale spears. Simple to attach and detach, these handy functions don’t require the use of tools, saving time and effort.
  *Not available on LA555
• Third Function Hose Quick Coupler* (Optional) – To broaden the scope and capabilities of your front loader applications, the Grand L60 is available with a third function hose quick coupler to operate
  attachments such as a 4 in 1 bucket. Attaching and detaching is possible with just a single touch.
  *Not available on LA555
• New Rod Indicator – This handy function helps you keep the bucket in a level position at all times, by allowing you to even check the normally hard-to-see raised bucket position.
  *LA555 equipped only with Grand L40 type rod indicator
• Spill Guard* (Optional) – The hydraulically controlled spill guard tilts the bucket forward as the loader is raised, thus reducing the spillage of the bucket’s contents. This makes filing and dumping easier and increases efficiency.
  *Not available on LA555
• Quick Attach/Detach Loader – This convenient system saves valuable time by letting you attach and detach the loader from the tractor. The mounting pins and hose couplers can be removed from the operator’s seat, without tools.
• Single-Lever Joystick
